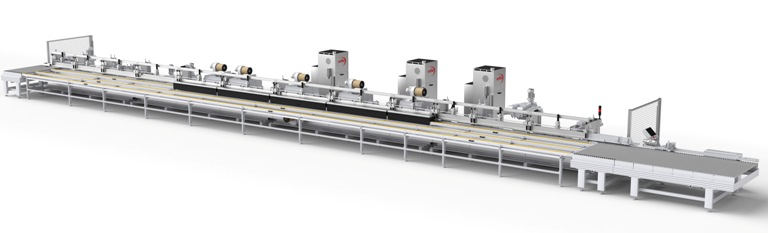

CEFLA FINISHING #productivity. Smartedge Agile

Feed any panel thickness into this machine and the tools adjust themselves without interrupting production.

on-the-fly machine adjustment to different panel thicknesses
no need for manual set-up each time a new panel is loaded
maximise edge processing speed and production efficiency
two operators are enough to man the machine
ideal for Batch One and just-in-time production

Additional information

panel thickness is registered at loading, data is shared with tools that automatically adapt to each new thickness
pressure beams are independent between columns, no longer unique for the full machine length
vertical axis of sanding belt unit dedicated to upper radius, controlled by CNC
opening and closing of patented Edge&Go head, controlled by CNC, enabling extremely fast adjustments to different edge shapes
patented double-application vacuum coating head with filling scraper for a smaller overall footprint
patented upper and lower cleaning unit eliminates excess coating and junction seam between surface and edge
patented sanding unit for vertical rounding of panel corners with a radius of 1 to 4 mm

SWITCH FROM ONE PANEL TO ANOTHER WITHOUT INTERRUPTIONS, IMPROVING EFFICIENCY AND PRODUCTIVITY WHILE REDUCING PRODUCTION TIMES.

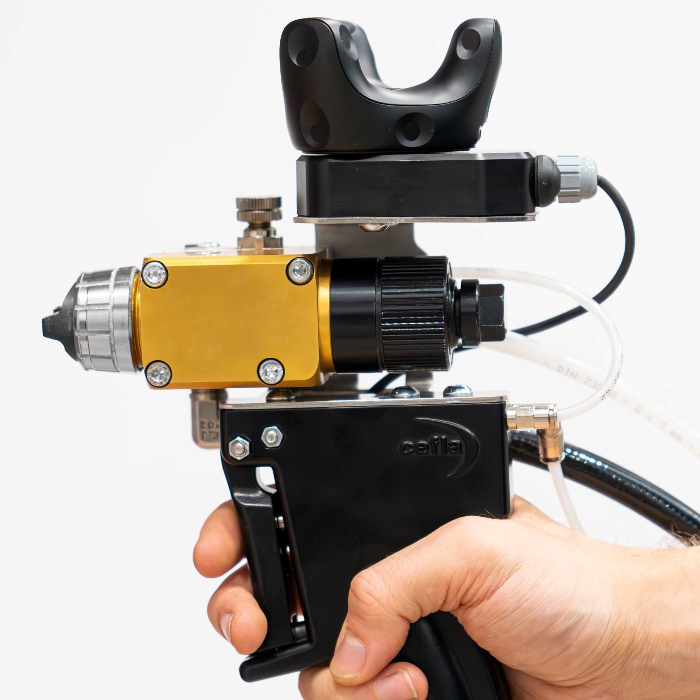

CEFLA FINISHING #simplicity. T-Mate

The easiest and most convenient way to program a spraying robot and fine-tune the trajectories without complex procedures or programming skills.

no need for skilled point-to-point programming knowledge
no need to work directly on the robot’s arm to define trajectories
optimise existing recipes by just fine-tuning parameters for immediate implementation
suited to any product, any substrate, any 3D shape, even the most complex
the only available solution for Fanuc robots, full integration with the reading barrier

Additional information

operator activates manual spray gun device and performs the coating trajectories on a real workpiece
operator pushes a button and the device uploads the data to the spraying robot
operator is free to fine-tune spraying parameters in order to optimise output
this system offers limitless potential for all shapes and complex 3D geometries
fine-tuning possibilities avoid the need to completely reprogram the robot to correct errors

PUSH-BUTTON SIMPLICITY TO PROGRAM SPRAYING ROBOTS, ADJUST TRAJECTORIES AND FINE-TUNE PARAMETERS FOR OPTIMISED RECIPES, WITHOUT PROGRAMMING SKILLS.

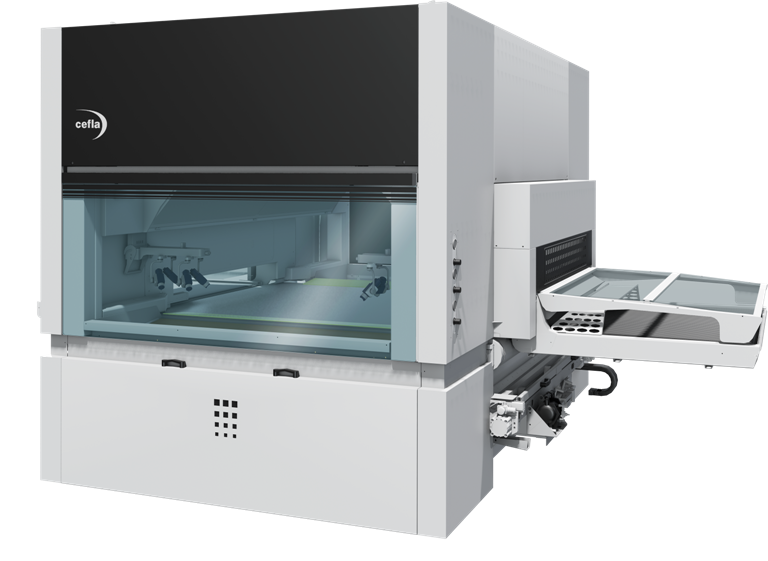

CEFLA FINISHING #flexibility. Easy FCS

Reduces colour change and mixing times from 3 minutes to under 30 seconds with Fast Colour Switch, and increases reciprocating spray coater productivity.

adds one hour per shift of uptime to your spray coater
with 2K products, consumes less lacquer, less catalyst hardener and less solvent
maintains productivity despite the need to change colour frequently
zero downtime is also possible if colour change takes place between feeding of workpieces
ROI in under 2 years according to variables

Additional information

the FCS colour change valve device is fitted as close as possible to the spraying gun
on a machine with continuous CFB, system purging is performed directly on the conveyor belt
on a machine with paper conveyor belt, adding a quick purge device, guns and pneumatic hose/funnel is preferable

EXTREME FLEXIBILITY THAT LETS YOU GAIN SIXTY MINUTES MORE SPRAYING UPTIME PER SHIFT THANKS TO A HIGH-SPEED COLOUR SWITCH SYSTEM THAT ALSO REDUCES LACQUER WASTE AND SOLVENT CONSUMPTION.

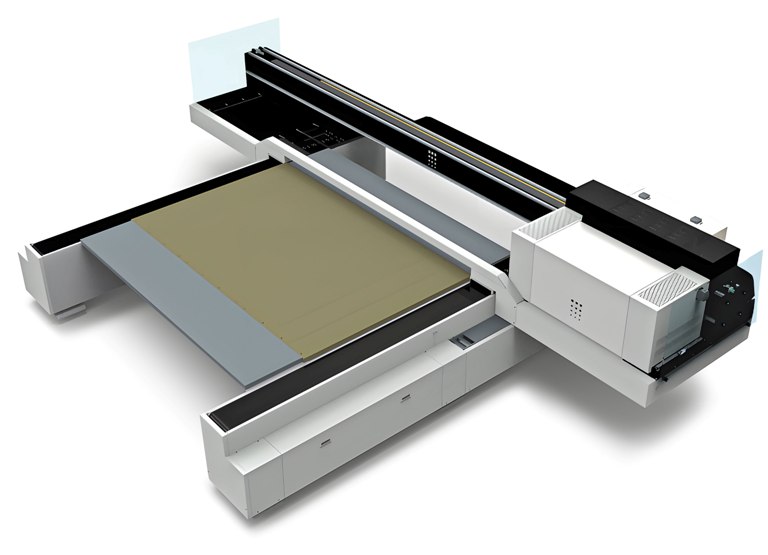

CEFLA FINISHING #reactivity. J-Print MP

The perfect combination of quality and productivity integrated into a finishing line, which helps say YES to all those requests for customisation.

J-Print MP can be incorporated into a complete finishing line with a significantly lower investment compared to a single-pass solution, providing additional potential to customise products – even unique pieces – and maintain the line’s productivity.

an industrial digital printer seamlessly integrated into a finishing line
decorates any substrate material, from plastic to concrete, cardboard to steel, and wood of course
allows for a free choice of inks
our experience of all finishing technologies enables this solution to be integrated with expert advice

Additional information

standard working area: 3 x 2 metres, expandable up to 3 x 6 metres
productivity reaches 200 or 400 sqm/h, respectively with 4 or 2 passes

REACH NEW POTENTIAL FOR CUSTOMISATION WITH A MULTI-PASS DIGITAL PRINTER, CORRECTLY INTEGRATED INTO YOUR COMPLETE FINISHING LINE, FOR ALL SUBSTRATES. REACT POSITIVELY TO ANY REQUEST.

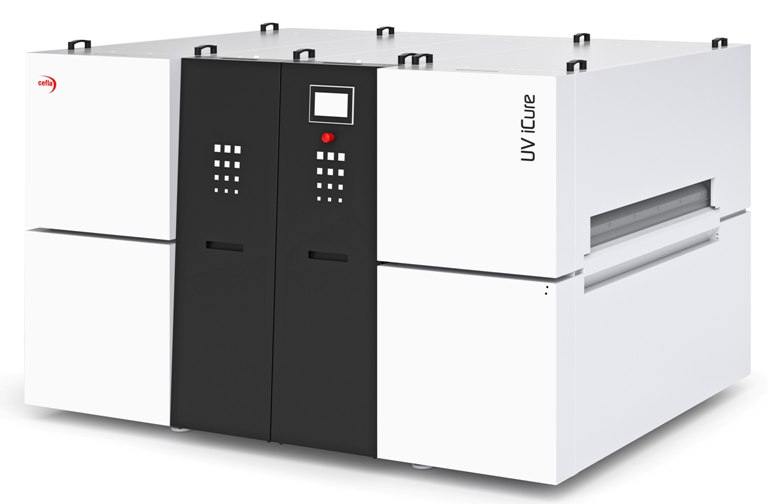

CEFLA FINISHING #sustainability. UV iCure

Totally eliminates mercury from UV curing ovens at the end of a finishing line with the same performance.

respects EU directives and replaces curing lamps containing heavy metals
no need to change the lacquers being used today
conserves the same curing performance with a combination of lamps
affordable, compact, safe alternative to electron beam technology

Additional information

by combining excimer lamps and UV LED lamps with appropriate wavelengths, in an inert environment, curing performance is optimised without mercury
excimer lamps are water-cooled with no heat transfer to coating and substrate, and no cooling fans
immediate on/off effect with no warm-up time
no need for mechanical shutters

ELIMINATE MERCURY FROM YOUR CURING PROCESS WITH A SAFE, SUSTAINABLE SOLUTION THAT DOES NOT REQUIRE YOU TO CHANGE LACQUER TYPE.

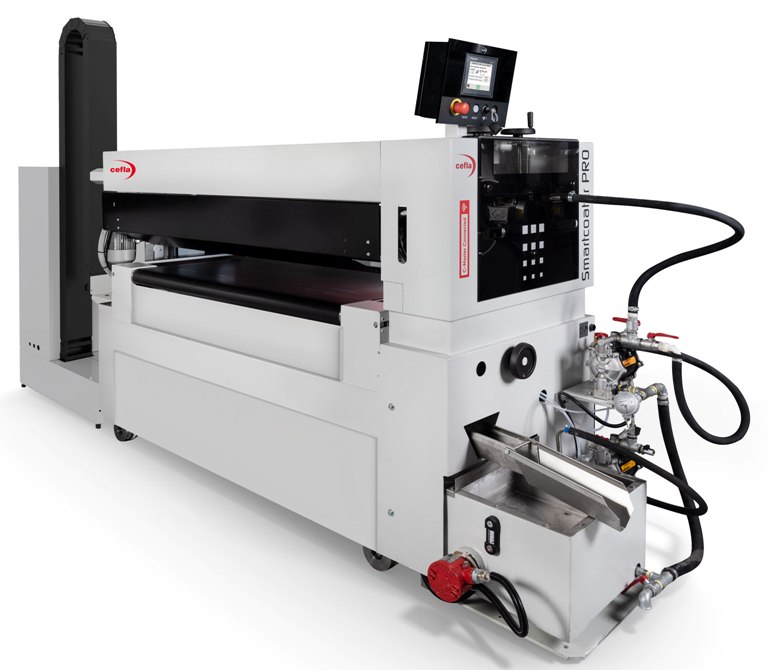

CEFLA FINISHING #consistency. Smartcoater Pro

Optimises roller coating operations, enabling fewer rejects, reduced cleaning costs, more uptime and better quality finish.

processes poorly calibrated panels and irregular flat surfaces
constant application head pressure for constant coating quality
minimises the number of rejected panels per batch
saves time on cleaning operations with automatic roller cleaning
reduces consumption and costs related to solvent use

Additional information

a pneumatically controlled floating application head adjusts to compensate for uneven surfaces as they enter the coating zone
a lifting device using four screw jacks increases the stability of the application head for superior coating consistency
emergency pneumatic lifting device also avoids potential damage to rollers, automatic roller cleaning system, etc.
handles panels with shallow grooves such as kitchen cabinet doors thanks to soft roller technology, replacing spray coaters for base coat application
a motorised roller system feeds the panels into the machine

INCREASE PRODUCTIVITY, ELIMINATE REJECTS, USE LESS SOLVENT AND TAKE CONTROL OVER THE FINAL QUALITY OF YOUR FINISHED PANELS AND ACHIEVE UNRIVALLED CONSISTENCY.

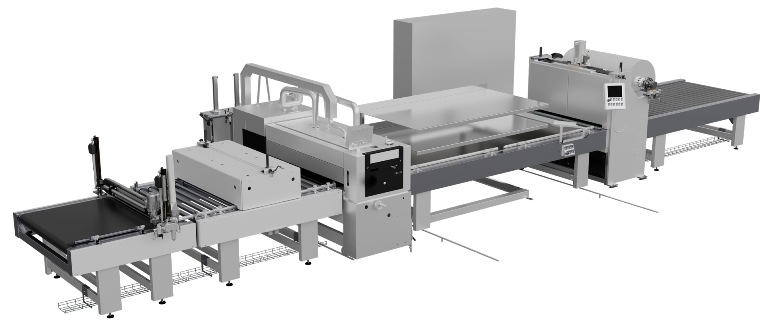

CEFLA FINISHING #accuracy. Düspohl range of lamination and wrapping solutions

Specialising in profile-wrapping solutions and technologies for the lamination of wide boards, Düspohl offers high-precision technologies for the application of decorative films on wood, PVC and composite materials.

Designed to fit easily into existing lines, machines can be configured according to specific production requirements. With an increasing focus on energy efficiency and waste reduction, Düspohl is committed to sustainable, reliable and future-oriented solutions.

Full range of solutions
